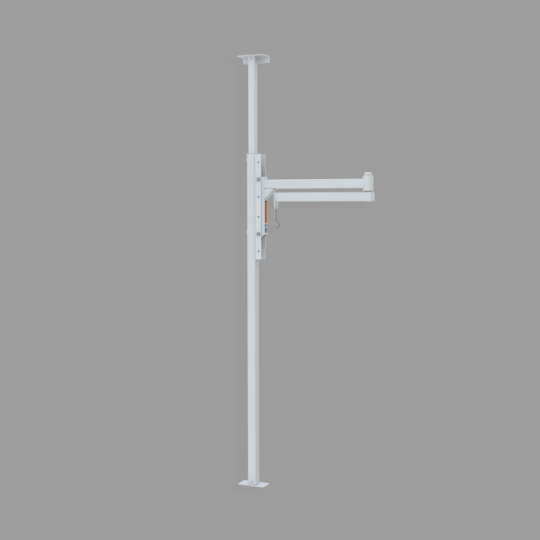

Orbit Patient Transfer Lift

The ORBIT® Patient Transfer Lift is an American-made, safe, and convenient device to assist in lifting and transferring individuals with limited mobility. Designed to be used with your favorite ancillary medical equipment (portable motor and sling), the ORBIT, with its articulating arm and pivoting stanchion with brake, can spin 360-degrees, allowing you complete control at all times, in all directions.

Unlike fixed track, rolling, or portable lifting systems, the ORBIT is non-intrusive to your home or surrounding space. The standard floor-to-wall or floor-to-ceiling mount system provides flexibility and reduces clutter. When wall mounted and not in use, the arm may be folded flat to the wall and out of the way. When mounted in the middle of the room from floor to ceiling, the arm may be folded in half and positioned in any direction for compact storage.

SKU: ORBIT Category:
Request a Quote

    Specs

    Lift components displayed in photos subject to change.

    • Components: 5’ arm and 7’-9’ or 8’-12’ stanchion
    • Application: Residential and Institutional
    • Operation: Patient Lifting and Transferring
    • Mounting: Mounted floor-to-ceiling or floor-to-wall
    • Total Weight: 5’ arm with 7’-9’ stanchion: 112.8 lbs | 5’ arm with 8’-12’ stanchion: 119.5 lbs
    • Weight Capacity: 440 lbs.
    • Stanchion: 7′-9′ H x 2.5″ W x 2.5″ D (approx.) | 8′-12′ H x 2.5″ W x 2.5″ D (approx.)
    • Frame Material / Finish: Powder Coated Steel

    MINIMAL ASSEMBLY

    Due to its single post design, installation time is reduced, which means minimal disruption for the user or their family. The ORBIT can be installed floor-to-ceiling or floor-to-wall.


    RANGE OF REACH

    With its articulating arm and stanchion each rotating 360-degrees (allowing unmatched range of motion in all directions) and the arm’s 5-point height adjustment (allowing the flexibility to set vertical clearance as needed), the ORBIT is the ideal solution when all-round flexibility and doorway transfers are needed.

    COMPACT STORAGE

  • ‍The standard floor-to-wall or floor-to-ceiling mount system provides flexibility and reduces clutter. When wall mounted and not in use, the arm may be folded flat to the wall and out of the way. When ceiling mounted, the arm may be folded in half and positioned in any direction.
